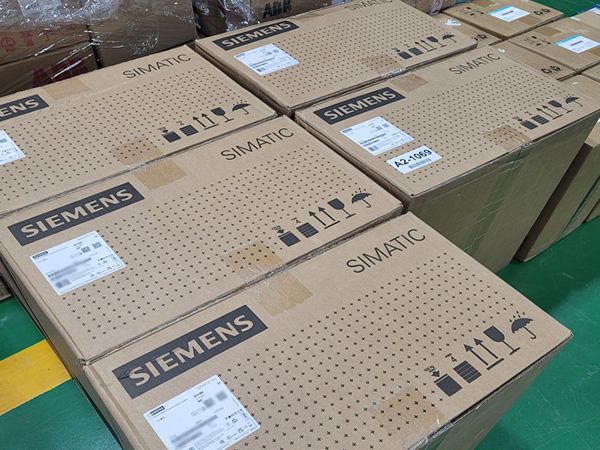

Wuhan Xieyuan is pleased to announce the successful shipment of the Siemens SIMATIC Process Control System IPC847E, including the following models:

• 6ES7661-1WC01-8XE1

• 6ES7661-1FU23-2UF5

All units were carefully inspected, verified, and securely packaged prior to dispatch to ensure full compliance with Siemens quality standards and project requirements. The equipment has now been delivered safely to the customer and is ready for deployment in critical process automation systems.

This successful delivery once again demonstrates Wuhan Xieyuan’s strong capability in supplying Siemens process automation and industrial computing solutions.

The Siemens SIMATIC IPC847E is a high-performance industrial PC designed specifically for process control systems, including DCS and SCADA applications. It is widely used in Siemens PCS platforms where high reliability, long-term availability, and stable continuous operation are essential.

The SIMATIC Process Control System IPC type IPC847E is the most powerful and well equipped system platform. It satisfies all requirements for implementing complex server applications and for archiving process data. Many basic components, such as chip set, processor, work memory, etc. are largely identical to those of type IPC647E. As a result of the double overall height, the SIMATIC Process Control System IPC of type IPC847E has more slots and therefore ample potential for expansions. Since it would be over-dimensioned as a client, it is only offered as a single station and server. SIMATIC Process Control System IPCs type IPC847E are UL-certified and have the CE marking for use in industry as well as residential, business and commercial environments.

6ES7661-1WC01-8XE1: SIMATIC Process Control System IPC847E; (Rack PC, 19, 4U), Interfaces: 3x Gbit LAN (RJ45), 1x DVI-D, 2x Display Port; 1x COM, Audio; 4x USB3.1 Gen2 (Type A); 2x USB3.1 (Type C) backside; 2x USB3.1 (Type A) frontside; 1x USB3.1 (Type A) internal; Temperature and fan monitoring, Watchdog, card retainer; Core i7-8700 (6C/12T, 3.2 (4.6) GHz, 12 MB cache, TB, AMT) - spare part; RAID1, 2x 2 TB HDD [Enterprise] 3.5 SATA; drive support for installation internal, 0.5 g vibration, 5 g shock; 16 GB DDR4 SDRAM (2x 8 GB), Dual Channel; without pre-installation; without operating system, without restore USB flash drive; bus module 11 slots: 3x PCI, 1x PCIe x16 (8 L), 5x PCIe x16 (4 L), 2x PCIe x4 (4 L), Industrial Ethernet (CP1623), (1 slot occupied); 100/240 V AC industrial power supply unit, power supply cord Europe.

6ES7661-1FU23-2UF5: SIMATIC Process Control System IPC847E; (Rack PC, 19, 4U), Interfaces: 3x Gbit LAN (RJ45), 1x DVI-D, 2x Display Port; 1x COM, Audio; 4x USB3.1 Gen2 (Type A); 2x USB3.1 (Type C) backside; 2x USB3.1 (Type A) frontside; 1x USB3.1 (Type A) internal; Temperature and fan monitoring, Watchdog, card retainer; Core i7-8700 (6C/12T, 3.2 (4.6) GHz, 12 MB cache, TB, AMT) - PCS 7 OS server, engineering server, web server; RAID1, 2x 1920 GB SSD 2.5 SATA; drive support for installation internal, 0.5 g vibration, 5 g shock, 1024 GB SSD M.2 NVMe to PCIe x4 adapter card (1 slot occupied) (for operating system); 64 GB DDR4 SDRAM (4x 16 GB), Dual Channel; PCS 7 V10.0 SP1 preinstalled; Windows Server IoT 2022 Standard Edition including 16 cores, 5 clients, 64-bit, MUI (en, de, fr, it, es, zh), 64-bit, with restore USB flash drive; TPM 2.0; bus module 11 slots: 3x PCI, 1x PCIe x16 (8 L), 5x PCIe x16 (4 L), 2x PCIe x4 (4 L), Industrial Ethernet (CP1623), (1 slot occupied), multi-monitor 4-5 screens, combined, onboard interfaces (2 x DP) + PCIe x16 graphics card (3x mDP: 3x adapter mDP 2x 100/240 V AC redundant Industrial power supply unit, power supply cord Europe;

SIMATIC Process Control System IPC847E

6ES7661-0EA01-1AE5

6ES7661-0EA01-1AD5

6ES7661-1PT42-1RE5

6ES7661-11016-1CE5

6ES7661-1EP41-1CA5

6ES7661-0EQ02-1CE1

6ES7661-0KU63-2UM4

6ES7661-0EA01-1AD1

6ES7661-1BC01-2UA5

6ES7661-1KC42-2UE5

6ES7661-0WD01-8UG5

6ES7661-1JQ16-2FE5

6ES7661-0FS42-2UG5

6ES7661-1KQ16-2UE5

6ES7661-1PT03-1RA5

6ES7661-0NT03-1AA5

6ES7661-1NT03-1CA5

6ES7661-0PC56-1PG5

6ES7661-0JC52-1CG5

6ES7661-1KC42-1RE1

6ES7661-0FS42-1RG5

6ES7661-0EC01-1CA5

6ES7661-0EA00-2FG5

6ES7661-0EP01-2FB1

6ES7661-1FD03-1RE1

6ES7661-1ED03-1AE1

6ES7661-0EB02-1AL1

6ES7661-1PU56-1RA5

6ES7661-0AB01-1AA1

6ES7661-0AB01-1AL1

6ES7661-1FU23-2UF5

6ES7661-1EX21-2FB5

Key Features & Advantages

• Industrial-grade reliability
  Designed for 24/7 continuous operation in demanding industrial environments.

• High computing performance and scalability
  Supports complex process control tasks and system expansions.

• Seamless integration with SIMATIC PCS systems
  Fully compatible with Siemens SIMATIC PCS 7 and related automation platforms.

• Long service life and system stability
  Ideal for mission-critical process automation applications.

Typical Applications

The SIMATIC IPC847E is widely used in:

• Oil & gas processing

• Chemical and petrochemical plants

• Power generation and energy systems

• Metallurgy and materials processing

• Pharmaceutical and food & beverage industries

• Large-scale continuous process control systems

Why Choose Wuhan Xieyuan

By choosing Wuhan Xieyuan, customers benefit from:

• ✔ Genuine Siemens industrial products

• ✔ Professional selection and technical support

• ✔ Reliable supply and on-time delivery

• ✔ Comprehensive pre-sales and after-sales service

We are committed to providing stable, efficient, and trustworthy automation solutions for industrial customers worldwide.

Contact Us

If you are looking for Siemens SIMATIC IPCs, PCS process control systems, or other industrial automation products,
please contact Wuhan Xieyuan for pricing, availability, and technical support.

Wuhan Xieyuan — Your Trusted Partner for Siemens Process Automation Solutions
