Product Details

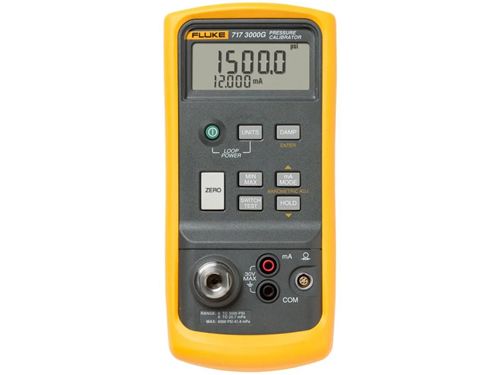

Fluke 717

· Measure pressure, 0.05% of full scale with internal sensor up to 5000 psi/345 bar sensor (5000G model)

· Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24 V loop power

· Measure pressure to 10,000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules

· 1/8 NPT female pressure fitting

· Compatible with non-corrosive Gases and liquids

· Select eleven different engineering units

· Zero, min, max, and hold functions

· Calibrate P/I instruments with simultaneous pressure and current measurement

· Pressure switch test function captures set, reset and Deadband values of a pressure switch

· Error % calculation of mA measurements for quick pass-fail decisions

· Long lasting battery life

· Holster features test lead storage

· Compatible with Toolpack magnetic hanging system

· New switch test

The Fluke 717 Pressure Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 750 Series Documenting Process Calibrators, the Fluke 717 Pressure Calibrator is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes. The Fluke 717 Pressure Calibrator is compatible with Fluke 700Pxx differential, gauge and absolute pressure modules to increase functionality.

Fluke 717 1G Pressure Calibrator

Fluke 717 15G Pressure Calibrator

Fluke 717 30G Pressure Calibrator

Fluke 717 100G Pressure Calibrator

Fluke 717 300G Pressure Calibrator

Fluke 717 500G Pressure Calibrator

Fluke 717 1000G Pressure Calibrator

Fluke 717 1500G Pressure Calibrator

Fluke 717 3000G Pressure Calibrator

Fluke 717 5000G Pressure Calibrator

Fluke 717 10,000G Pressure Calibrator

Measurement Accuracy
Pressure717 Series
Measure Pressure(Internal sensor)
Accuracy0.05% full scale
FunctionsZero, min, max, hold, damp

Note gasses / liquids (non-corrosive)

Fluke 717 1G
Range-1 to 1 psi, (-68.9 mbar to 68.9 mbar, -83 to 6.89 kPa)
Resolution0.0001 psi, 0.001 mbar, 0.0001 kPa
Over pressure5 x full scale

Fluke 717 30G
Range-12 to 30 psi, (-850 mbar to 2 bar, -83 to 206.84 kPa)
Resolution0.001 psi, 0.1 mbar, 0.01 kPa
Over Pressure2 x full scale

Fluke 717 100G
Range-12 to 100 psi, (-850 mbar to 7 bar, -83 to 689.48 kPa)
Resolution0.01 psi, 0.1 mbar, 0.01 kPa
Over pressure2 x full scale

Fluke 717 300G
Range-12 to 300 psi, (-850 mbar to 20 bar, -83 to 2068.42 kPa)
Resolution0.01 psi, 1 mbar, 0.1 kPa
Over pressure375 psi, 25 bar

Fluke 717 500G
Range0 to 500 psi, (0 mbar to 34,7 bar, 0 to 3447.38 kPa)
Resolution0.01 psi, 1 mbar, 0.1 kPa
Over pressure2 x full scale

Fluke 717 1000G
Range0 to 1000 psi, (0 mbar to 69 bar, 0 to 6894.76 kPa)
Resolution0.1 psi, 1 mbar, 0.1 kPa
Over pressure2 x full scale

Fluke 717 1500G
Range0 to 1500 psi, (0 bar to 103.4 bar, 0 to 10342 kPa)
Resolution0.1 psi, 0.01 mbar, 1 kPa
Over pressure2 x full scale

Fluke 717 3000G
Range0 to 3000 psi, (0 bar to 207 bar, 0 to 20684.27 kPa)
Resolution0.1 psi, 0.01 bar, 1 kPa
Over pressure2 x full scale

Fluke 717 5000G
Range0 to 5000 psi, (0 bar to 345 bar, 0 to 34474 kPa)
Resolution0.1 psi, 0.01 bar, 1 kPa
Over pressure2 x full scale

Fluke 717 Series with Pressure Modules
Measure pressure(Via pressure module connector using optional Pressure Modules)
Range29 pressure modules, 0-1 inH20 to 10,000 psi, 2.5 mbar to 700 bar ranges. Over pressure per pressure module specs
ResolutionPer pressure module specs
AccuracyPer pressure module specs
FunctionsZero, min, max, hold, damp
CurrentRange0 to 24 mA (-25% to 125%)
Resolution0.001 mA
Accuracy0.015% + 2 counts
Loop powerRange24 V DC

Drive; 20 mA into 1000 ohms for battery > 6.8 V; 700 W for battery 5.8 to 6.8 V
DisplayClear 5 digit LCD
Environmental Specifications
Operating temperature-10°C to 55°C
Storage temperature-40°C to 60°C
Humidity (without condensation)95% (10°C to 30°C)
75% (30°C to 40°C)
45% (40°C to 50°C)
35% (50°C to 55°C)
Operating altitude3,000 M max
Safety Specifications
SafetyCSA C22.2 No. 1010.11992
Mechanical and General Specifications
Size (L x W x H)201 x 98 x 52 mm (7.93 x 3.86 x 2.06 in)
Weight22 oz, approximately 600 G with holster
Warranty3 years
Shock and vibrationRandom, 2 G, 5-500 Hz
1 m drop test
Battery typeSingle 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
